Construction

Flat Face

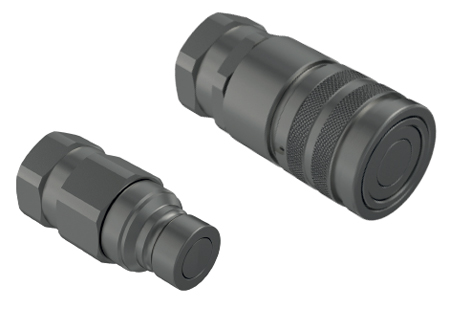

FFH

Flat face Male and Female couplings. The flat valve shut-off system prevents contamination and spillage. Real maximum working pressure of 35 MPa and Zinc-Nickel plating.
Available sizes: 1/8", 1/4”, 3/8”, 1/2”, 5/8”, 3/4”, 1”.
Interchangeable according to ISO 16028. Size 1/8" has surface treatment in Mate 500 (CrIII) and it is not ISO interchangeable.

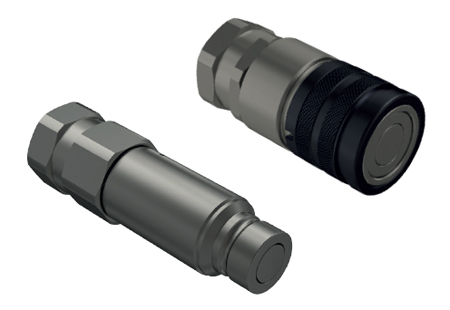

3FFH

Flat face Male and Female couplings. The flat valve shut-off system prevents contamination and spillage. Real maximum working pressure of 35 MPa and Zinc-Nickel plating.
Connectable under residual pressure. It is possible to couple either a 3FFH Female half under pressure with a FFH Male half, or a 3FFH Male half under pressure with a FFH Female half.
Available sizes: 3/8”, 1/2”, 5/8”, 3/4”. Interchangeable according to ISO 16028.


FSH

Flat face Female couplings, equipped with sector latching technology. The sector latching system enables to eff€ectively tackle the Brinelling eff€ect, provoked by high frequency impulse pressures.
Real maximum working pressure of 35 MPa and Zinc-Nickel plating. Connectable under residual pressure in the Male half when coupled with a 3FFH Male coupling.
Available sizes: 3/8”, 1/2”, 3/4”, 1”. Interchangeable according to ISO 16028.
